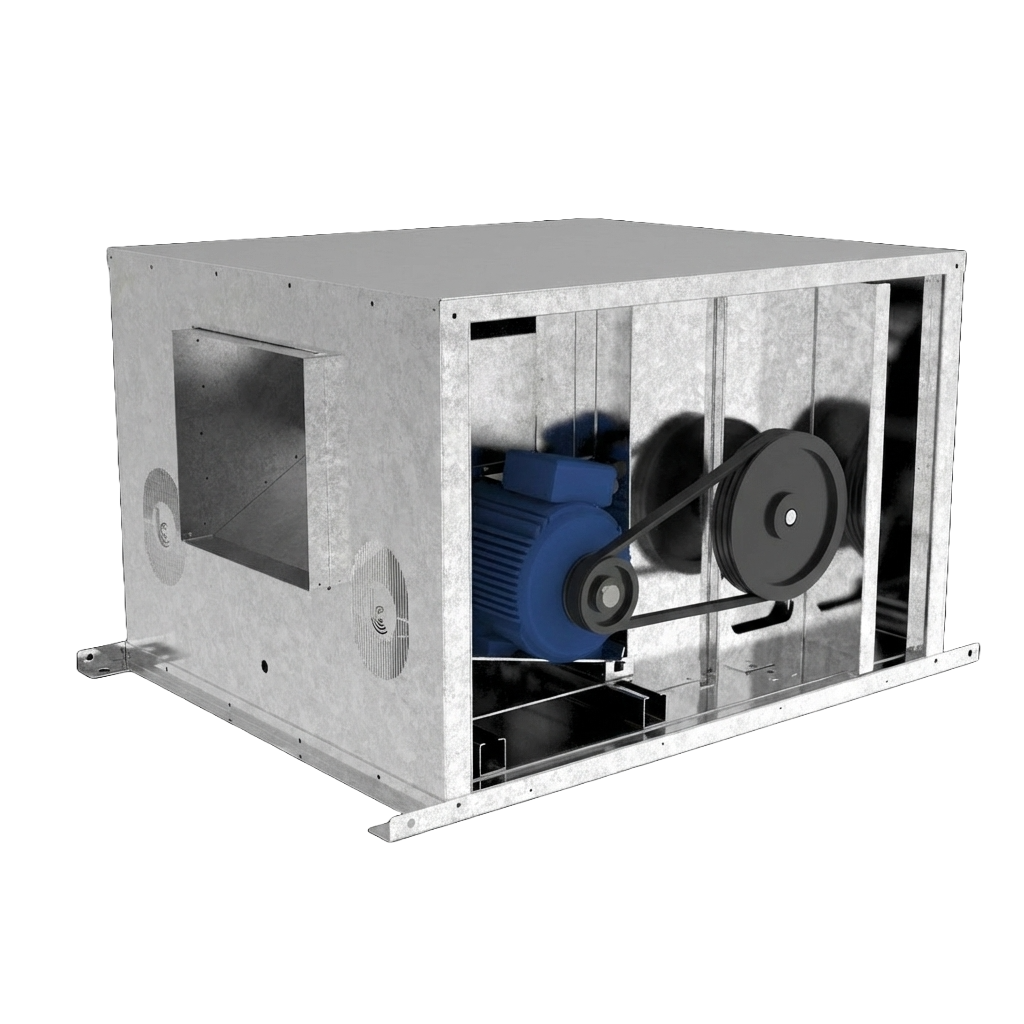

Transmission fans
DESCRIPTION
Double-inlet or simple-inlet multiblade fan for drive operation.
– M.T. series attachment by support legs.
– Housing and turbine made of galvanized iron.
– Bearings support mounted on two inlets by rivets in M.T. and M.T.C. Series. In M.T.R. Series, mounted on U-section welded to main frame.
– Flows rates of up to 55.000 m 3 /h.
– Pressures of up to 90 mm. c.a.
– Maximum operating temperature: 70º C.
