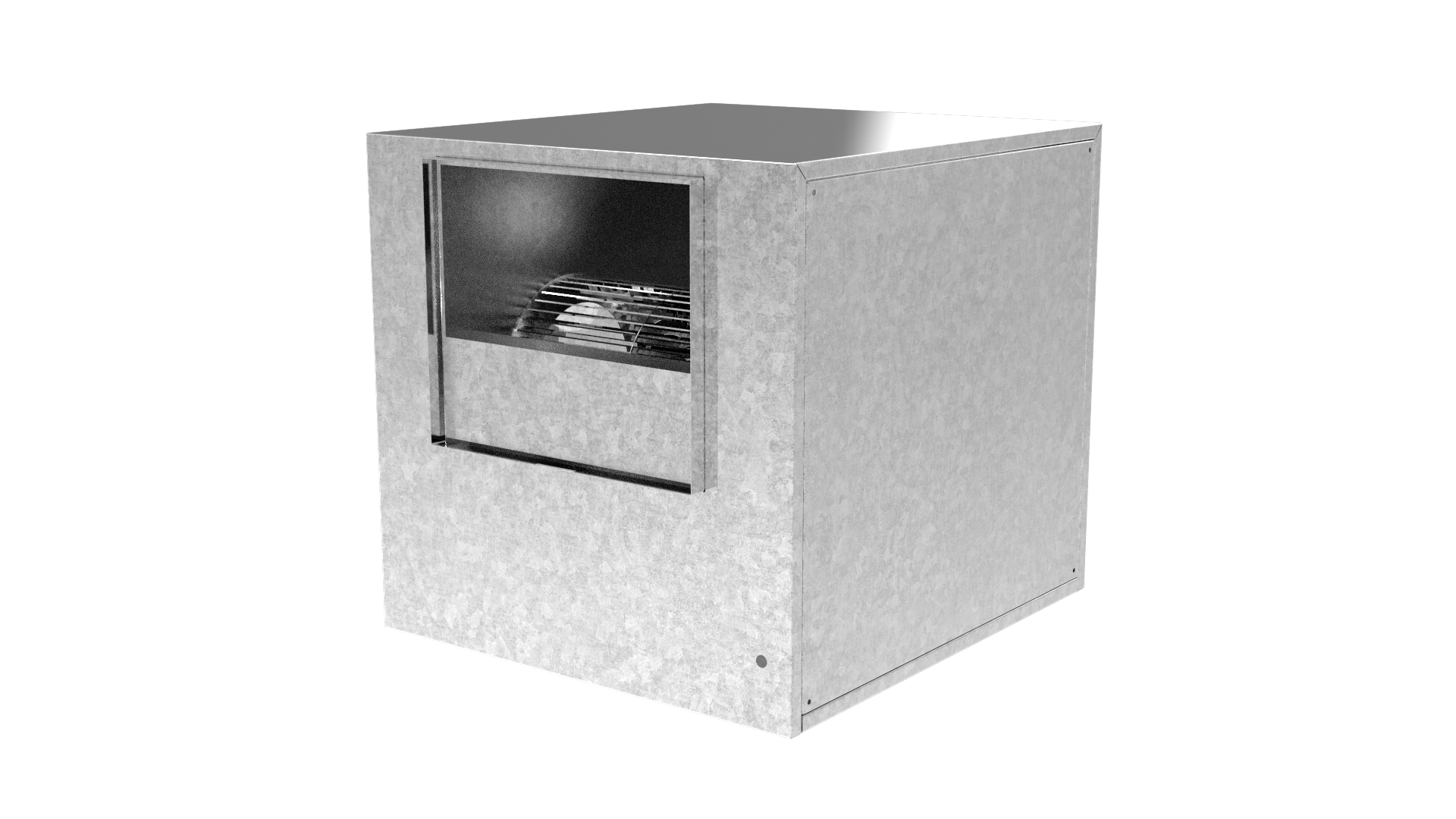

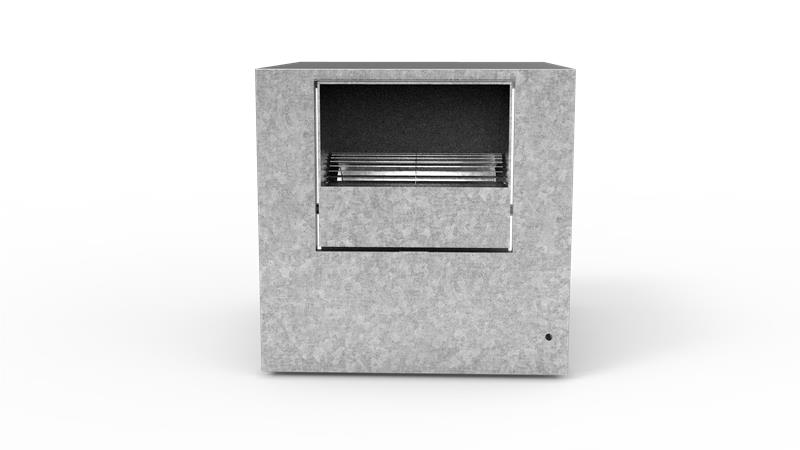

M.T.C. Transmission Ventilation Boxes
DESCRIPTION
Fan boxes in order to flow air by driven pulley fan.
– Flow rates up to 30.000 m3/h.
– Pressures of up to 90 mm.cda.
– Maximum operating temperature 70ºC.
– Consist of double-inlet multiblade fan for drive operation.
– Double-inlet multiblade MT fan in 10/10 and 12/12 models, and MTC fan in 15/15 and 18/18 models.
– Made of galvanized iron. All walls are supplied fully lined with heat and sound insulating materials.
– Access to inside via rear mouth and opening side covers.
– Motor and fan unit mounted on floating bedplate by means.
– Tightness guaranteed by insulating seal.
– Anti-drip design. Can be installed outdoors.
– All housings supplied with extra blank cover for rear mouth to facilitate attachment to duct.
– In stock, hoppers to fit any diameter at both intake mouth and propulsion mouth.
– Vibration-absorbers on bedplate.
– Their compact size makes them suitable for installations where access is difficult.
– Only available with horizontal outlet.
